How to Add a Headset to a Phone

After being asked how one would go  about adding a microphone and headphone jack to a phone so that a headset could be used, I decided to take a look for myself and figure out what to do. Here is what I found, however, I didn’t actually add the jacks as I have no need for them. For these instructions I did hook a microphone and headset up to the phone and it worked.

First you will need to locate the wires going to the handset. There will be 4 wires going to it from the inside of the phone.

IMG_3035

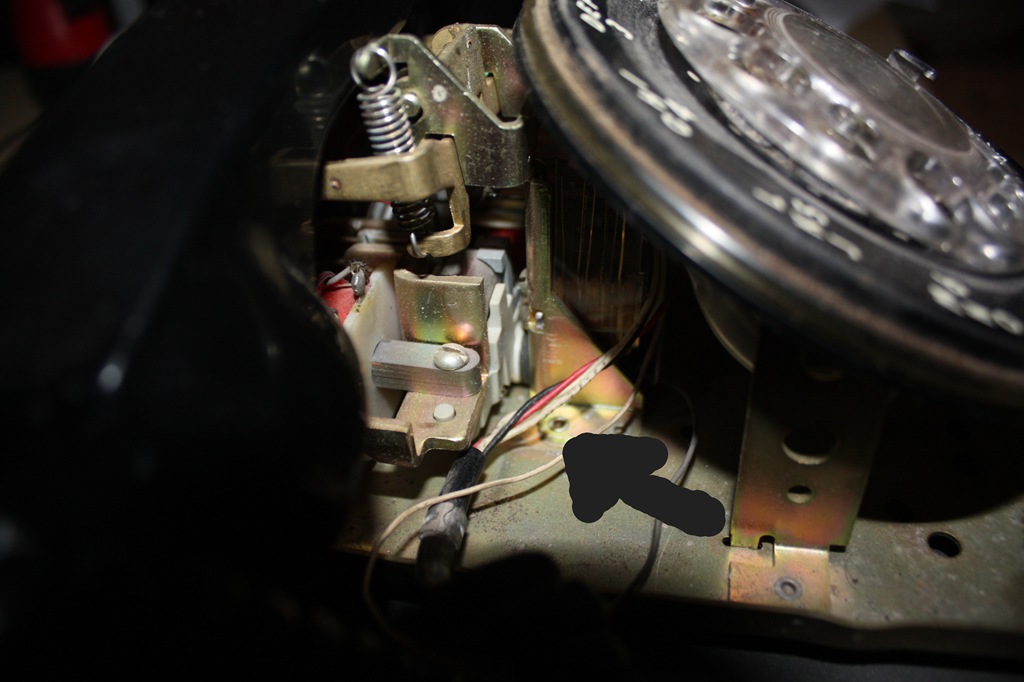

Here you can see the 4 wires coming from the handset on this phone there are 2 white wires and a red and black wire.

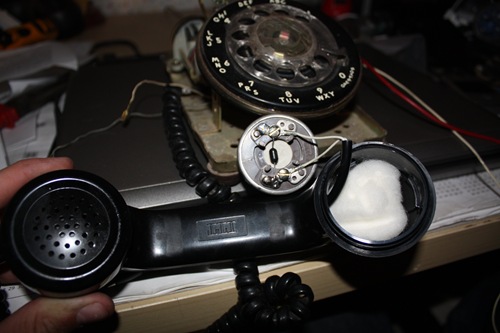

Once you have located the wires you will need to determine what each one does. For this I took the handset apart to see which wires went to the speaker and which wires went to the microphone. I was able to determine that the two white wires went to the speaker and the red and black went to the microphone.

IMG_3038

Now you can go back to the base of the phone and follow the wires. Two of the wires should lead to the same place as these are the ground wires for the speaker and microphone.

IMG_3039

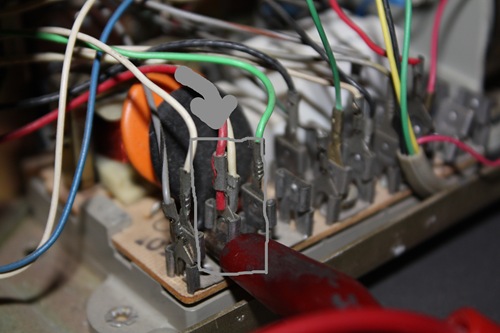

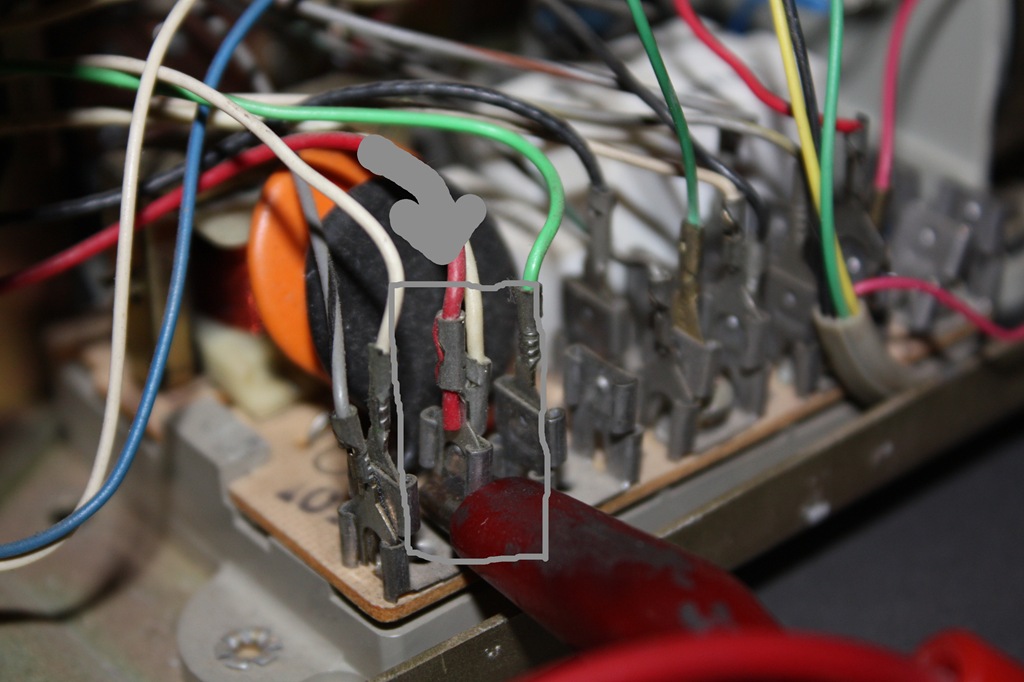

Here you can see that the white wire and the red wire are the ground wires and connect to the same terminal.

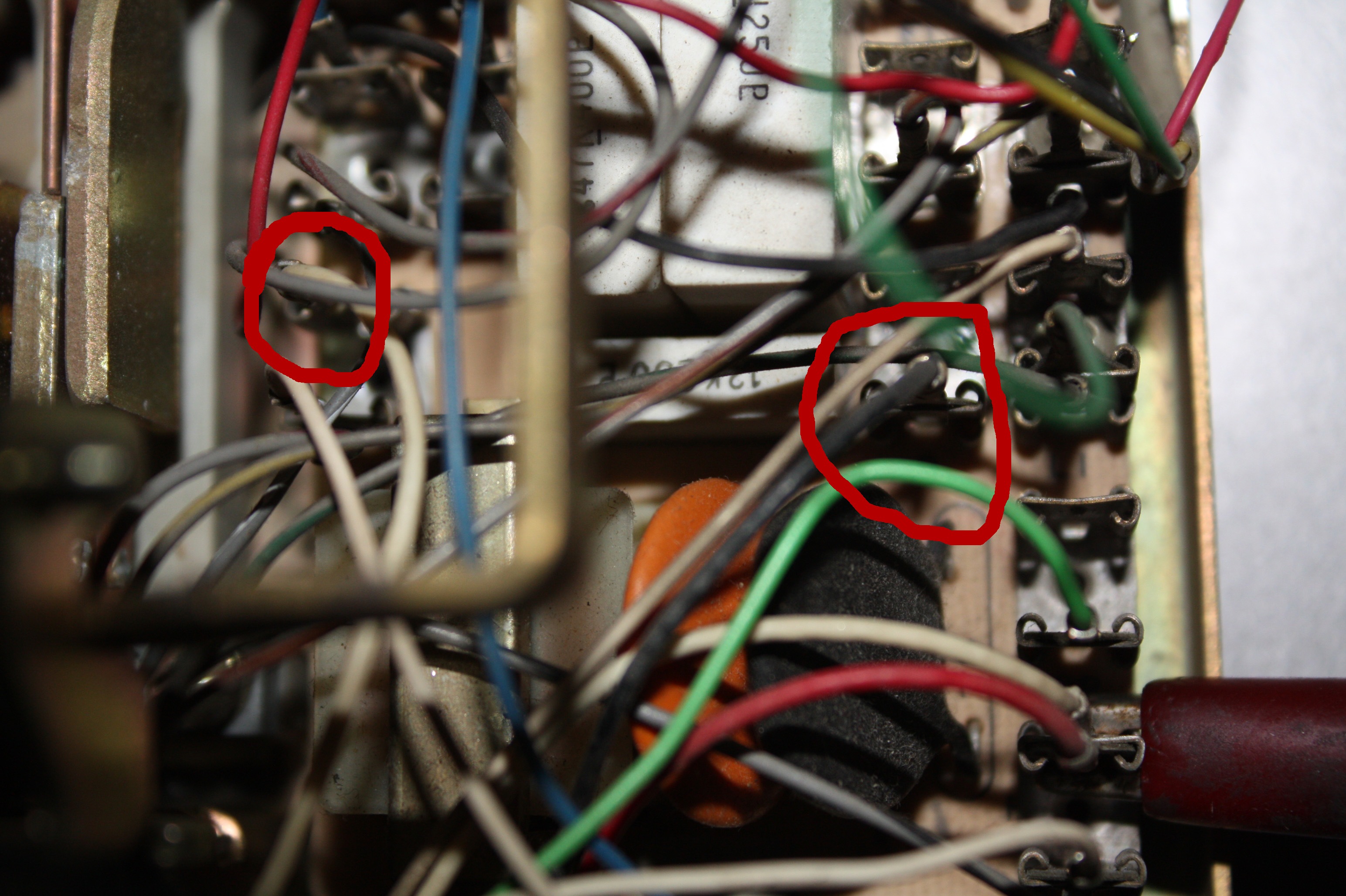

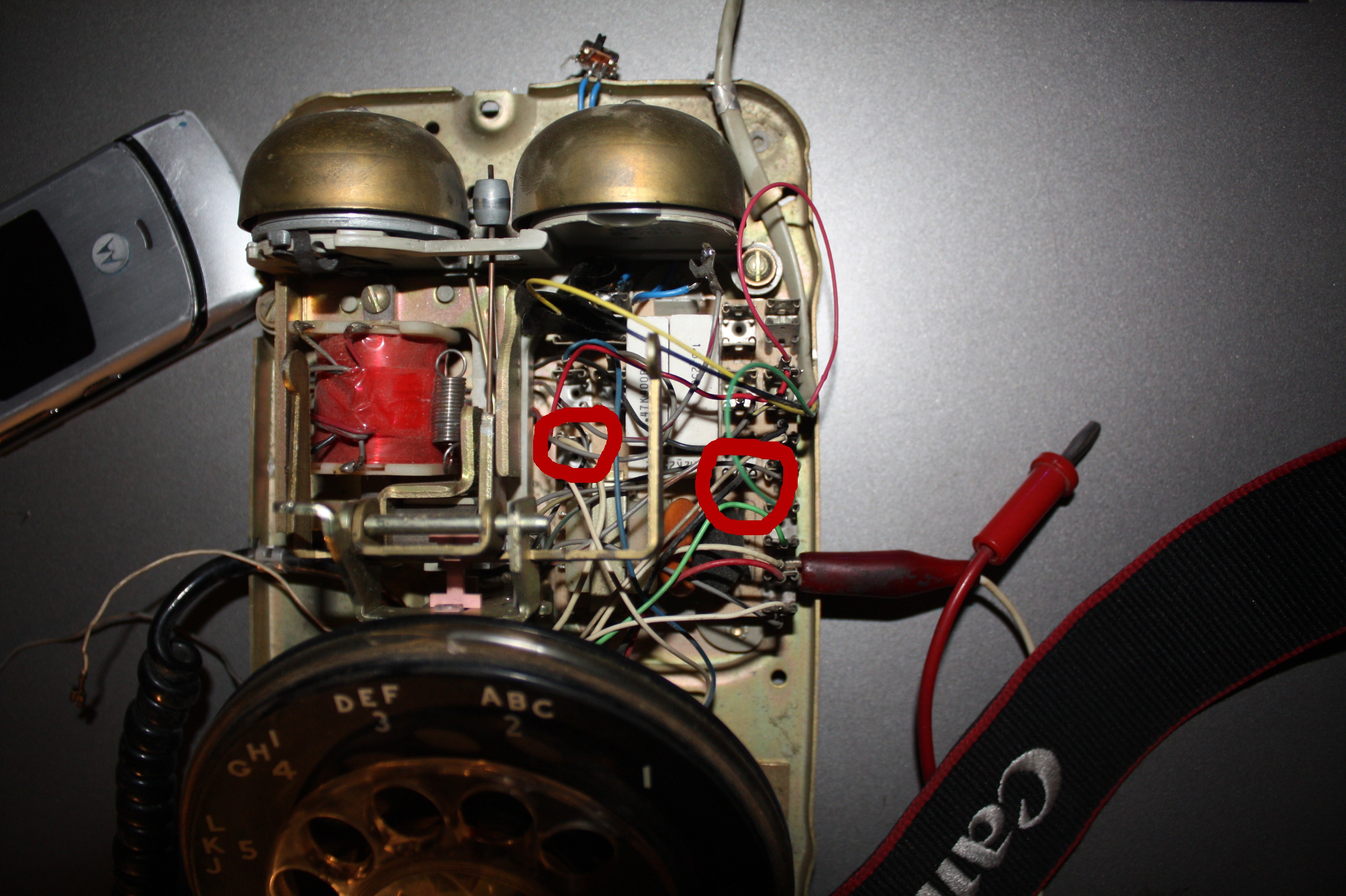

Now follow the other two and note there locations.

IMG_3041

IMG_3044

Now you will need to add the jacks to the phone. For this you will need to buy two jacks like these 1/8″ female headphone jack. Then use the included wiring diagram to solder from the ground wire for the microphone and speaker (where 2 of the wires connected) to each of the ground terminals on each jack. Then wire the other to “hot” wires to their respective terminals on each jack. Now you have your microphone hack and headphone jack. The only thing left to do is install a switch on the wires that are connected and disconnected when the handset is lifted away from the base. This is because only when the handset is removed from the base is the phone “on” and able to dial numbers and answer calls. By adding a switch here you will be able to use your headset without lifting the receiver off the base.

Tags: , , , ,

Saturday, September 26th, 2009 at 21:33 • ElectronicRSS 2.0 feed • leave a response or trackback

3 Responses to “How to Add a Headset to a Phone”

  1. Math says:

    Can you help me put a ringer light indicator on my rotary 500?

    I want to do it very simply, almost without soldering anything

    https://www.youtube.com/watch?v=Z2hUFDQQqzw

    thank you for your time

  2. Jena says:

    Hi,

    I had planned for this to be my Christmas project but got carried away with installing ringer switches instead (great instructions and it worked like a charm). I became confused, too, about the headphone and microphone jacks. With a product such as this:

    http://www.thesource.ca/estore/product.aspx?product=4318459&language=en-CA&ref=2005

    could I just install one jack on the phone or is it necessary to have a headset with two plugs and install 2 jacks on the phone?

    Thanks again!!!

    • miles says:

      I believe it can be done either way. But you would need to research the specifics of using one jack as the wiring will be different for the two setups.

      –Miles
