Here are plans to build a small motorcycle from any old BMX bike. The tools that I user were a welder, die-grinder, crescent wrench, and other smaller hand tools that are common around most peoples homes. My finished product had a gear ratio of 12:72 or 1:6 this carried me (150
lbs.) at 30+ MPH!

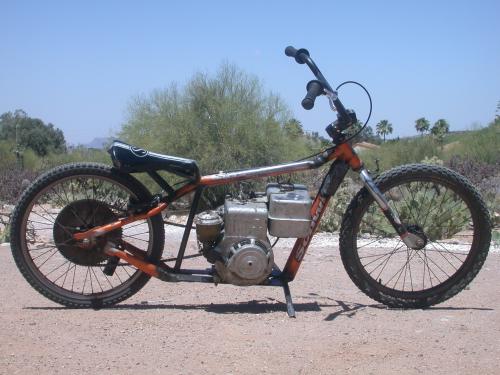

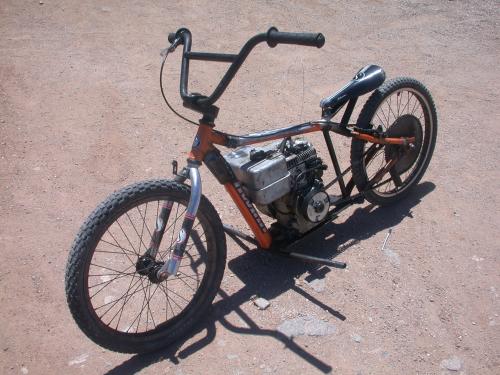

Here are some pics of my bike right now:

Video:

Required Parts:
1. BMX Bike
2. Steel tubing about (4 ft.)
3. 3/16" or thicker flat stock (4 ft.)
4. 3 H.P. engine
5. Clutch (mine was 12 tooth)
6. Sprocket (mine was 72 tooth)
7. Chain compatible with your clutch and sprocket (mine was #35) (5ft.)

How to Build:
1. Remove all of the pedal assembly

2. After removing the pedal assembly measure the inside of the frame and compare it to the height of the tallest point on your motor. (most likely the spark plug)

3. Now we must redesign the frame to hold the engine. (It is quite simple all you need to do is bend the front support down till you have your desired height and finish it with a motor mount.
4. Build a motor mount to make the bottom part of your frame. (I welded two pieces of 3/16" flat stock together)

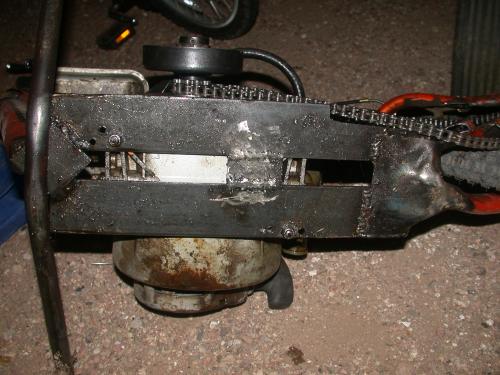

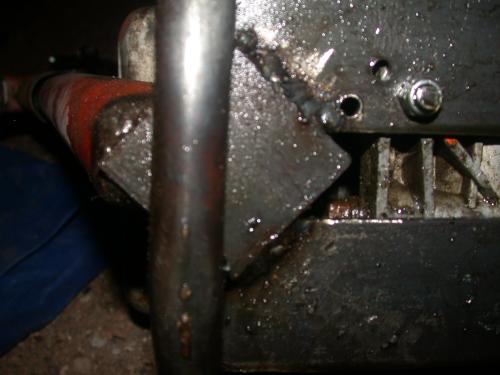

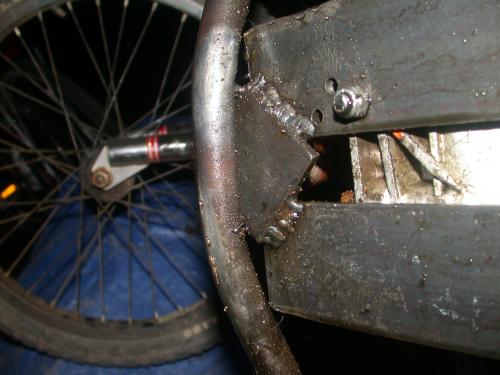

Here is a picture of the front frame after being cut and rewelded to make room for the motor. While I had the front apart I also cut the top part of the frame and took about an inch out of it to tilt the front end back and give it a board track racer look. I also welded a piece of thick sheet metal to the bottom of it to improve structural strength.

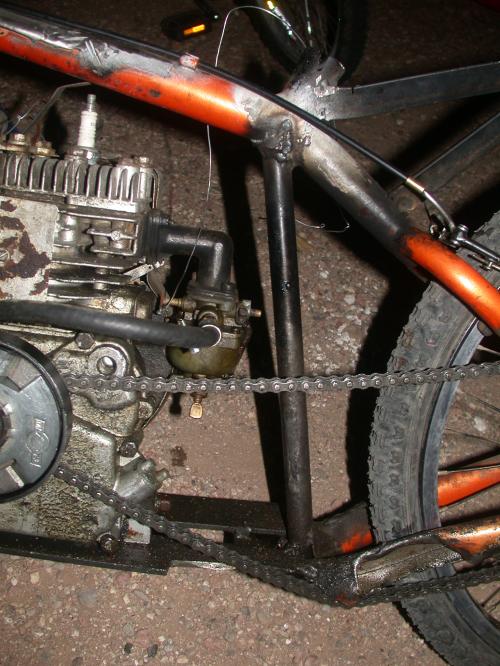

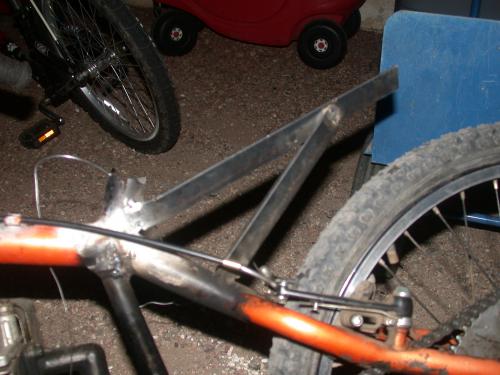

5. Once the frame is mocked up and you have fitted your engine to the motor mount and have the clutch on the motor (hint hint put the clutch on) Bolt the motor in and weld up the frame nice and tight. In my final version I put a support from the top of the frame to the bottom to prevent the frame from flexing. This is a must!!!!

LOOK RIGHT BEHIND THE ENGINE TO GET AN IDEA OF WHAT I MEAN

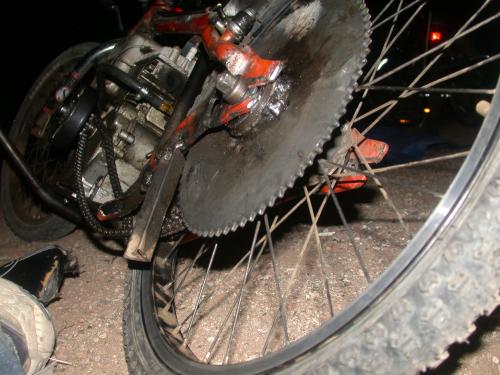

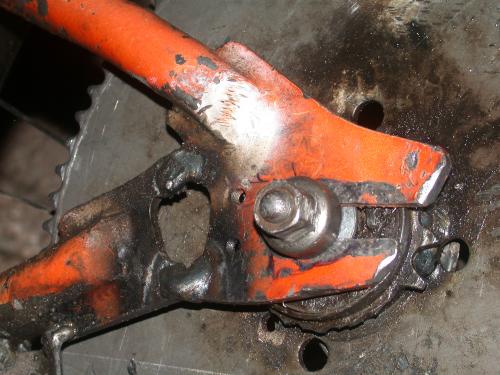

5. Build the sprocket and chain drive assembly. For this I put the rear tire on backwards because the motor needed to be mounted with the chain on the other side of the bike that what is normal for a pedal bike. Basically I moved the chain sprocket from the right side to the left. I then welded my 72 tooth sprocket onto the one used when it was a BMX bike. Make sure to line the sprocket and clutch gear up as close as possible to avoid complication with the chain falling off. Just the other day I was riding mine up a hill and the rear sprocket came loose. Upon further inspection I realized that the clutch I had welded the sprocket onto (BMX gear) is a left hand thread so when the bike is used normally the gear is tightened onto the tire as more forward force is applied, but after putting the tire on backwards I was unthreading it as I put more force on it. As of this article I have not fixed it but hope to have it working again soon.

7. Now all you need is brakes. I chose to use the stock bike brakes, but I highly recommend something better. The added weight and increased speed melts the stock pads and takes a good 25 ft to stop at full braking.

8. Now try it out and you will probable realize something isn't as strong as you thought or something needs to be tweaked. Don't feel bad it took me 3 weeks after building it to get it to the point where I could ride it up the street without breaking down and having to walk it home.

Misc:

***Disclaimer***
I am not responsible for ANYTHING and I mean anything that results from the use of any part of this article.
